STM32 PCB Design, Layout, and Rapid Prototyping Services

Adequate Infosoft offers worldwide STM32 Development Services, allowing for an easy transition from conceptual hardware architecture to manufacture-ready PCBAs.

Our expertise ensures that your STM32-based product is optimized for great performance, thermal efficiency, and long-lasting reliability.

The STM32 family of Microcontrollers is based on ARM Cortex-M Cores and has become the industry standard for applications requiring high computational power, real-time responsiveness, and extensive peripheral support.

These chips are complex and can have high pin counts (e.g., LQFP, BGA) along with high-speed interfaces, the design and layout of your PCB would greatly benefit from having a professional implement the PCB designconcepts. This approach will reduce the chances of encountering hardware or signal integrity problems in the final product.

STM32 ARM Cortex-M H7 Series 10K 4K7 XTAL USB PWR USR RST ADEQUATE INFOSOFT · STM32-DEV-REV2

STMicroelectronics Controllers Commonly Used in Our Designs

Adequate Infosoft specializes in developing high-performance embedded hardware using STMicroelectronics microcontrollers for industrial, consumer and IoT products.

Our engineers create dependable PCB layout designs and firmware solutions customized for real-time control, low power operation, and scalable embedded systems .

Commonly used ST controllers by our engineering team include:

STM32F4 Series

High-performance MCUs for sophisticated embedded applications

STM32F1 Series

Dependable and commonly used controllers for general embedded applications

STM32L4 Series

Very low power MCUs optimised for battery-powered equipment

STM32H7 Series

Very fast MCUs dedicated to complex, compute-intensive platforms

STM32G0 Series

Economically priced MCUs designed for contemporary embedded systems

The team concentrates on developing robust PCB architectures, efficient power designs and optimising the way peripherals are integrated together, to provide reliable performance for industrial automation, smart devices and connected embedded platforms.

Case Study: Engineering a High-Density Dual-Mode IoT Terminal Using STM32

Recently, Adequate Infosoft was hired to develop a specialized IoT terminal. It needed to have a maximum thickness of 1.8 cm. The project required dual-mode firmware architecture (Standard Calculator vs. Secured Admin Terminal) and a modular, flush-mount wireless connectivity system, all powered by an STM32 microcontroller.

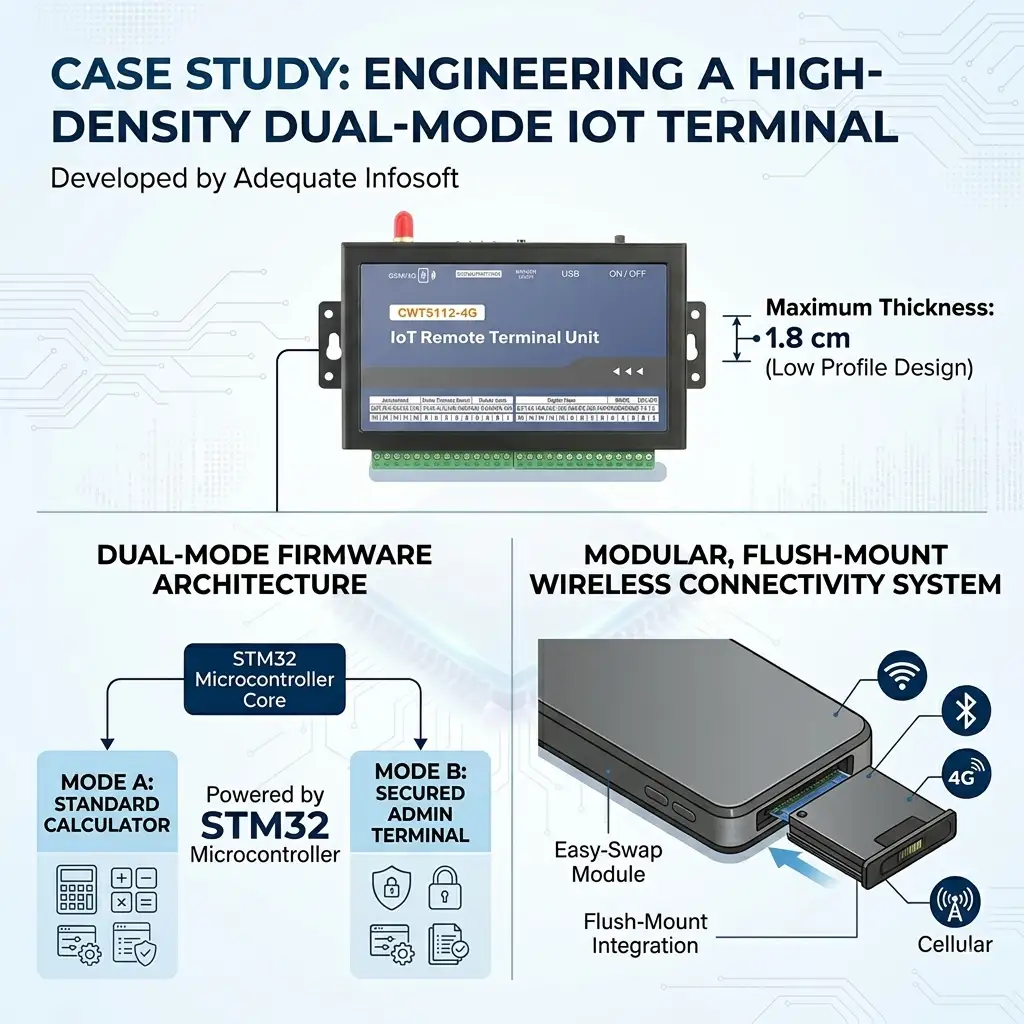

Engineering a High-Density Dual-Mode IoT Terminal Using STM32

High-Density PCB Design & Layer Stackup

To meet the 1.5 cm to 1.8 cm profile, our team used a 4-layer HDI (High-Density Interconnect) PCB. We applied a "component-on-one-side" strategy. The STM32 and passive components were placed on the bottom layer. The top layer was reserved for the 5x5 tactile switch matrixes.

Signal Integrity:

We used micro-vias to route the 25-button matrix without increasing the board's thickness.

Power Delivery Network (PDN):

An internal ground plane was dedicated to suppressing noise from the external cellular dongle, which is essential for CE/EMC compliance.

Integrating Mechanical Components and Creating Modular Connection Points

To meet the "Flush-Fit" requirement of the Wi-Fi/Cellular dongle, we designed a recessed USB/UART slot that was built into the cutout of the PCB and allowed the accessory to fit "inside" the 1.8 cm footprint of the device. The low profile of the soft tact switches as well as using custom 1.8x1.0 cm overlays provides a clean, minimalist design result.

Dual Tier Firmware Architecture

Our embedded engineers have created a custom boot loader for the STM32 that is responsible for managing the 2-Tier Access Logic of our system:

Standard Mode

It executes a lightweight mathematical engine with a disabled interrupt for and Status LED's to ensure a "dark" profile of the unit publicly.

Admin Mode

It is PIN gated and provides the GUI initialization and dongle initialization. We implemented a T9-style alphanumeric input system to allow complex API key entry using only the 25-button layout.

Prototype Creation and Compliance Testing

Functional Proof-of-Concept (PoC) was produced using CNC machined enclosures to verify the thermal performance of the STM32 in a tightly fitted case.

CE/RoHS Preparation:

Pre-scan EMC testing was done to confirm that the high frequency switching of the external dongle would not affect the internal logic of the device, resulting in an established path for entry into the European marketplace.

Our Custom STM32 PCB Design, Layout & Rapid Prototyping Services

1. Advanced STM32 PCB Design - Schematic Design

The process of designing an STM32 microcontroller board is much more complicated than designing a standard 8 or 16 bit microcontroller based on many factors, specifically clock rates that can reach as high as several hundred MHz therefore the layout needs to be treated as a high speed design.

Routing BGA and high pin count devices:

We design escape routes for fine pitch BGA parts by using micro-vias and multi-layer stackups (typically 4 to 12) to maintain signal integrity.

Routing for clock and signal integrity:

Precise routing of external crystal oscillators and high-speed buses (such as USB HS, Ethernet, or external memory interfaces) to minimize jitter and electromagnetic interference (EMI).

Decoupling and powering-up sequencing:

STM32 require very special power filtering; therefore, we carefully design decoupling capacitor networks, in specific locations, to minimize high-frequency noise and to maintain the stability of the core voltage.

2. Rapid Prototyping: Verifying Complex Systems

Developing a "Proof of Concept" for an STM32 project can be a very high risk phase before starting production. We help with rapid prototyping services that reduce the time from design to validating the physical version.

Functional Validation:

We do not just assemble a board; we validate the hardware to work with the software. This includes testing the SWD/JTAG debugging interfaces and confirming that the GPIOs and peripherals (I2C, SPI, CAN-FD and DAC) operate to spec.

Excellent Component Sourcing:

As the global market for chips can be unpredictable, we assist you in choosing the STM32 variants (F0, F4, H7 or U5 series) to find the best combination of performance/cost/supply chain availability.

Thermal Profiling:

When using high-performance chips such as the STM32H7, thermal profiling is performed to ensure that thermal vias and copper pours are properly dissipating heat with the use of thermal imaging and thermal simulation to avoid the chip from being thermally throttled.

3. Industrial-Grade Firmware & Embedded Integration

As an international software & IoT developer, Adequate Infosoft develops the firmware that powers your STM32 printed circuit board .

We execute firmware using System-on-Chip (SoC) platforms (like the STM32) through firmware development tools and environments (e.g., STM32Cubemx, STM32 Cube) that support the following development areas:

Using Hardware Abstraction Layer (HAL) and Low-Layer (LL) Drivers

We develop efficient, multi-threaded firmware solutions with STM32 Ecosystems by leveraging HAL & LL driver technologies.

Using Real-Time Operating Systems (RTOS)

We have experience integrating real-time operating systems (RTOS), like FreeRTOS, Azure RTOS, or Zephyr for complex multi-task operations in industrial automation and robotics.

Using Advanced Low Power Management Techniques

For battery-powered devices, we will use a battery management technique (packet-sleep) combined with the various Low Power Mode (LPM) configurations in the STM32 (standby, sleep) to maximize the length of time devices remain "wireless" in the field.

4. Compliance with Worldwide Standards (E-A-T)

We adhere to the highest standards of expertise, authority, and trust throughout our engineering process and will ensure your STM32 will be ready for all global markets:

EMI/EMC Compliance:

We design every layout with a "Compliance First" approach – employing solid ground planes and appropriate shielding to achieve first pass success on FCC/CE verification testing.

DFM:

Our standard manufacturing package includes complete documentation to include Gerber X2 files, IPC compliant footprints and optimized BOM to create a seamless transfer to high volume assembly facilities.

Security / Protection of Intellectual Property:

The incorporation of hardware level security measures including RDP, secure bootloader operation, and cryptographic hardware acceleration.

STM32 Service Comparison: Choosing the Right Series

Feature STM32 L/U Series (Ultra-Low Power) STM32 F/H Series (High Performance)
Typical Layers 2 - 4 Layers 6 - 12 Layers
Focus Battery Life & Efficiency Computational Speed & Graphics
Ideal For Wearables, Remote Sensors Industrial Gateways, Motor Control
Our Service Power-optimized PCB Layout High-speed Signal Integrity Design

The complexity of STM32 development requires a partner who understands both the "bit and the atom."

Adequate Infosoft delivers world-class PCB design, layout, and prototyping that ensure your product is fast, reliable, and manufacture-ready. Let us handle the engineering complexities so you can focus on leading your industry.
