STM32 FPV Drone Flight Controller Development

The STM32 FPV Drone Platform is an open-source project that has been created by the IoT App Development Company in which a comprehensive first-person view drone ecosystem is constructed making use of the unique STM32-based electronics.

This platform differs from other projects in that it not only provides a flight controller or ESC but rather it offers all the avionics including two special PCBs, full firmware source code, a 3D printable airframe, and files for manufacturing it.

The project was conceived to provide a complete reference implementation for engineers, students, and hobbyists who wish to design, build, and modify their own FPV drone using fully open-source PCB designs, firmware, and CAD files.

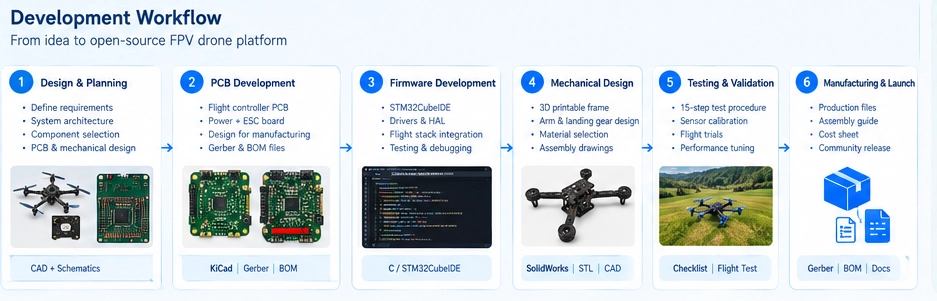

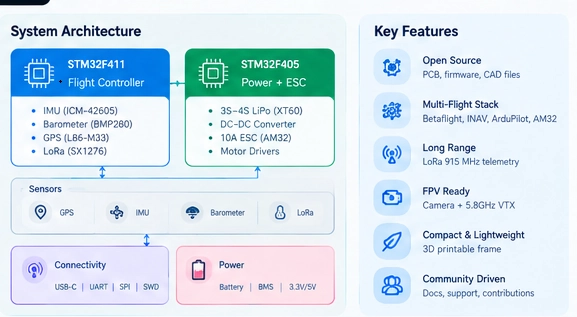

The use of a custom STM32F411 flight controller together with a combined STM32F405 power distribution and electronic speed controller board offers a degree of vertical integration rarely found in the open-source drones field while offering support for the leading flight stacks such as Betaflight, INAV, ArduPilot, and AM32.

Flight Controller PCB

The flight control unit is the electronic brain of the platform which utilizes the STM32F411CEU6 ARM Cortex-M4 microcontroller with a 100 MHz clock speed and 12 MHz crystal oscillator.

This particular microcontroller has been chosen due to its compactness and its many features so that it can satisfy the unique requirements of advanced flight control algorithms without being too expensive for professional makers of embedded solutions.

The board integrates a comprehensive suite of sensors and communication interfaces. The ICM-42605 IMU serves as the primary inertial measurement unit, offering high-resolution accelerometer and gyroscope data essential for attitude estimation and flight stabilization.

A BMP280 barometer provides altitude measurement for altitude-hold and navigation functions, while an L86-M33 GPS module enables position awareness and waypoint navigation. An SX1276 LoRa 915 MHz transceiver extends telemetry range far beyond conventional Wi-Fi or Bluetooth links, making the platform suitable for long-range FPV missions.

Some of the connectivity functionalities include USB-C for programming and configuration purposes, SWD for debugging purposes and UART and SPI as means of communication in devices to be connected to the device.

The board has a special backup battery port and takes in an external 3.3 V voltage through the onboard LDO which provides adequate voltage to all other components.

The MKII version made significant improvements over the initial version by including compact ICM-42605 IMU component, USB-C connection, better PCB connections, more debugging connection points, SPI debug pads that can be used with oscilloscopes, connectors that are simpler to connect and improved spacing of components making their manufacturing easier.

Power Distribution and ESC Board

The Power Distribution & ESC Board integrates three important functions into a single small PCB. These three functions are power regulation, battery distribution, and a speed controller based on AM32.

The effect of this integration is the reduction of weight, the simplification of wiring, and the increase in reliability through the reduction of inter-board connections.

The power system accepts 3S–4S LiPo batteries through an XT60 connector, with high-current PCB traces designed to handle the peak currents demanded by brushless motors. A DC-DC buck converter provides efficient voltage regulation, while power filtering and reverse polarity protection safeguard sensitive electronics from electrical noise and connection errors.

The ESC section utilizes an MCU, specifically the STM32F405, here chosen since this Cortex-M4 chip can run the AM32 firmware, a popular open-source firmware known for its highly effective motor control and configurability.

The ESC has a 10A current rating and is compatible with motors with a 935KV rating. The PCB layout has been optimized to manage heat during operation and while performing.

Embedded Firmware Development

The firmware has been developed entirely in C programming language and uses STM32CubeIDE, a dedicated integrated development environment from STM32.

The repository consists of flight controller firmware, drivers for sensors, GPS communication platform interface, LoRa communication of the flight controller, ESC firmware changes, driver codes, and a developed hardware abstraction layer that protects the hardware-level code from the software application logic.

The hardware abstraction layer is a particularly important architectural decision, as it enables the firmware to be ported to different STM32 variants or adapted for alternative sensor configurations without rewriting the entire codebase. This modularity is essential for a platform intended to serve as a reference implementation for the community.

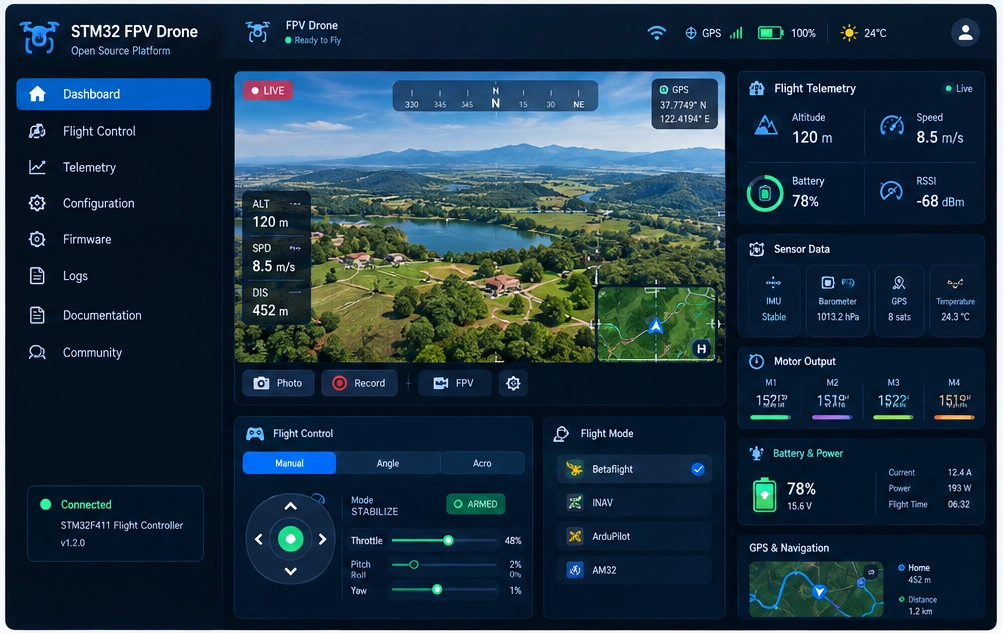

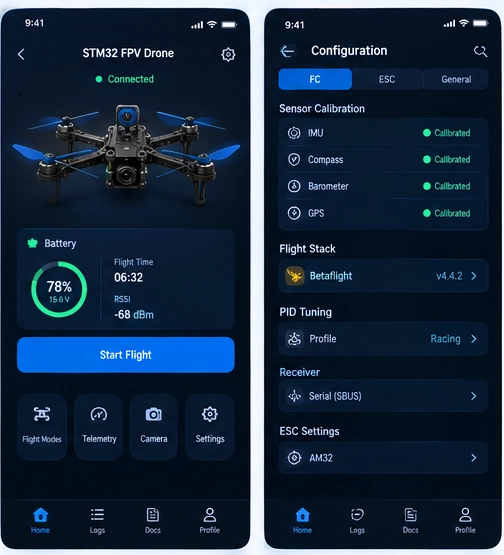

Flight Stack Compatibility

Instead of creating a flight control system from the ground up, the system was intentionally made to work with the most common open-source flight software. Betaflight, which is the most commonly used FPV system for racing and freestyle flying, allows for precise manual control of flight.

INAV adds GPS navigation capabilities for autonomous waypoint missions. ArduPilot brings full autonomous flight capabilities including mission planning and return-to-launch functionality. AM32 serves as the ESC firmware, providing smooth and efficient motor commutation.

With this compatibility approach, users now face fewer entry obstacles because they can use the available documentation, configuration procedures, and the help of the community in connection with those flight stacks. The hardware needs only to supply the sensor data and motor outputs in the required formats and the flight stack does the rest.

3D-Printable Frame

The airframe has been developed to be lightweight and robust without incurring high production costs through consumer-grade 3D printing methods. It is designed for the use of 5-inch propellers and is compatible with various models due to the availability of CAD files.

The MKII frame presents multiple upgrades when compared to the initial version, such as improved landing legs, enhanced construction strength, lightweight design, and modular properties for alteration.

Recommended printing materials reflect a thoughtful approach to material selection based on component function. The main frame is ideally printed in carbon fiber nylon for maximum strength-to-weight ratio, with PETG or PLA+ as accessible alternatives.

Landing legs are recommended in TPU, a flexible material that absorbs landing impacts and reduces vibration transmission to the flight controller.

The airframe features reinforced arm structures to withstand crash impacts, modular component mounting for easy assembly and repair, and easy maintenance access to all electronic components.

Miniaturization and Integration

A big challenge was presented by the integration of power distribution, battery management, and ESC in one PCB because of thermal management problems, current carrying capacity, and EMI.

The developers tackled the challenges through careful calculations of trace width, smart placement of components, and using thermal relief. Using high-current layout, the designers were able to use multiple copper planes and plenty of ground plane stitching in order to achieve signals integrity and heat dissipation.

The repository includes a comprehensive 15-step testing procedure that guides developers through the verification process before first flight.

The procedure process starts with basic electrical checks, including voltages supply verification, power regulation testing, and checking whether any short is present. Then, the procedure follows with flashing the firmware, confirming USB connections, testing the IMU and GPS, verifying SPI communications, testing ESC outputs, and confirming motor rotation direction.

All electronic systems have to be validated before moving on to Betaflight configuration, calibration of the sensors, radio failsafe test, and tethered hover test.

This methodical approach to testing reflects the inherent risks of FPV drone development, where a single wiring error or firmware bug can result in catastrophic failure. The extensive test points and debugging interfaces integrated into the PCB design further support this validation-first methodology.

The production have been taken into account from the original planning stage. The storage not only includes all documentation related to the idea but also ready-to-manufacture Gerber files, automated assembly files, various assembly drawings, and cost sheets, as well as 3D mock-up designs and silkscreens.

Well-planned design-for-manufacturing routing provides for the reduced need of implementing special processes and tolerances in the mass production of the boards.

The bill of materials specifies the complete component list: the STM32F411 flight controller PCB, STM32F405 ESC board, open-source CAD frame, brushless motors at approximately 935KV, a 4S LiPo 1500mAh 100C battery, 5-inch propellers, an FPV camera, a 5.8GHz video transmitter, a LoRa-compatible receiver, and a 915MHz SMA antenna.

The STM32 FPV Drone Platform exemplifies the principles of building a complete, production-ready drone system that uses openly sourced components.

The platform reaches a rare degree of vertical integration, and software compatibility by integrating a STM32F411 custom-made flight controller, a power distribution system and electronic speed controller, while also supporting ready-made flight software tools like Betaflight, INAV, ArduPilot and AM32.

The 3D-printable airframe and the provision of PCB files ready for manufacturing make it easier for developers to join the project while the modular structure and many test points facilitate improvements.

This prototype is a valid tool for the FPV drone as well as a helpful resource on embedded systems, PCB design and robotics engineer training.

Project Repository: github.com/IoT-App-Development-Company/DroneControllerUsing-STM32
