NXP Hardware, PCB Design, Layout & Prototyping Company

To find a company that offers complete NXP hardware and firmware development services, you'll need to partner that understands not only individual components but also has a broad background and knowledge across the other parts in the NXP ecosystem.

Adequate Infosoft has the proven capabilities to meet your needs in all aspects, including experience with NXP Microcontrollers, Embedded firmware, Industrial IoT solutions, Hardware communication protocols and full embedded product engineering.

At Adequate Infosoft, we position ourselves as your complete solution provider for PCB design, firmware development, prototyping, and mass production, all centered around NXP's industry-leading semiconductor portfolio.

Our team has a thorough understanding of each major product line of NXP if you are designing IoT devices for use in industry, automotive systems, medical devices, or consumer products.

From concept to certification, we deliver production-ready hardware that leverages the full potential of NXP technology.

This comprehensive guide walks through our complete service offerings, showcases our NXP board expertise, and presents a real case study demonstrating our end-to-end PCB design and assembly capabilities.

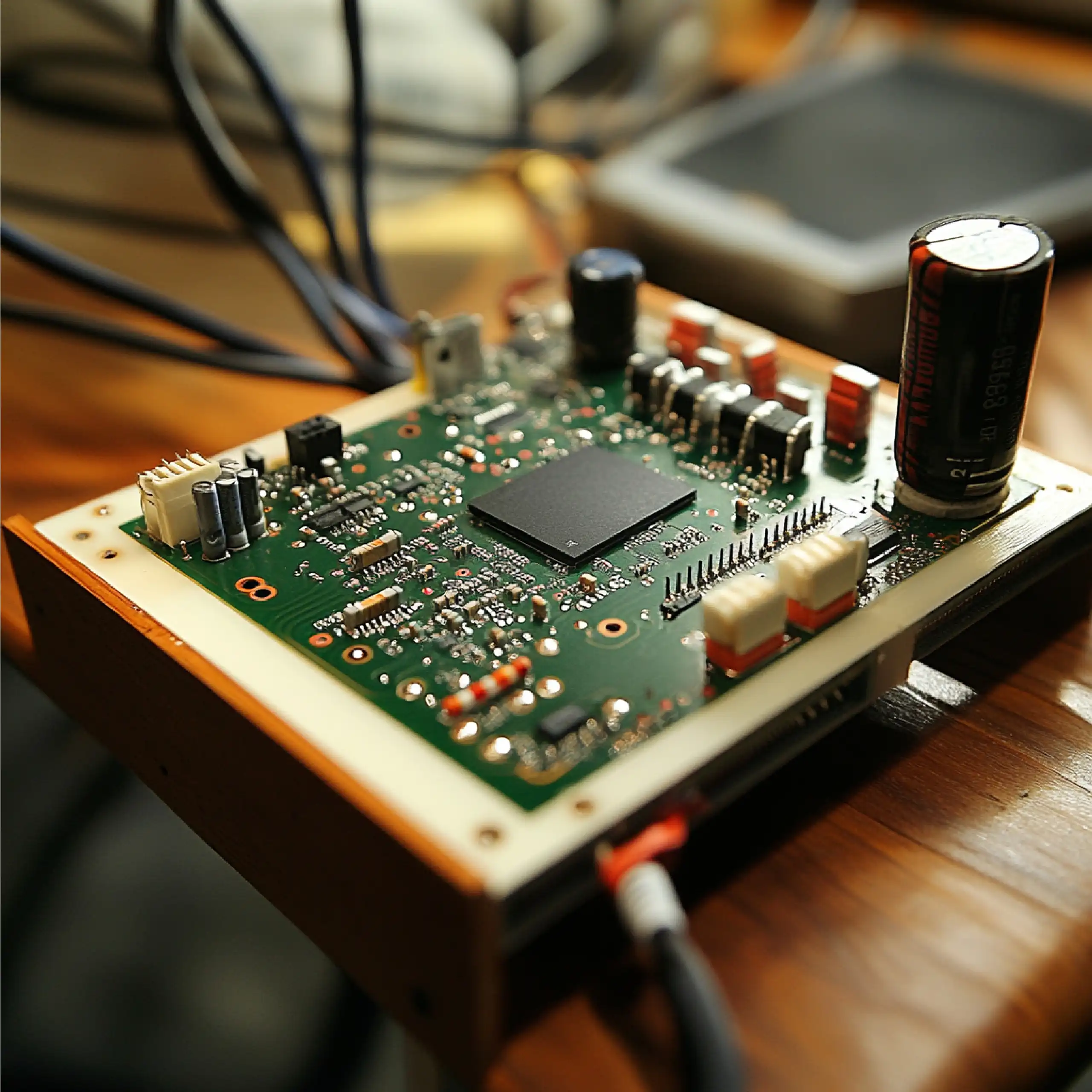

NXP Hardware PCB Design

Our Complete NXP Hardware Development Ecosystem

Individuals searching for NXP solutions generally look for an expert PCB design, dependable prototyping and assembly, or custom firmware development. Adequate Infosoft has all these elements and more integrated into one seamless entity.

1. PCB Design and Layout Services Built Upon NXP Processors

Quality NXP hardware begins with quality PCB design. Our team specializes in creating fabrication-ready PCBs that are optimized for high-speed NXP processors and includes managing complex signal integrity, power distribution and thermal requirements.

People searching for NXP solutions typically need: expert PCB design, reliable prototyping and assembly, or specialized firmware development. Adequate Infosoft delivers all three, integrated seamlessly.

Our PCB Design Capabilities include:

Service Category Specific Offerings
Schematic Design Component selection, peripheral integration, power budgeting
PCB Layout Multi-layer boards (4 to 16+ layers), high-speed routing, controlled impedance
Signal Integrity DDR memory routing, high-speed USB, Ethernet, MIPI-DSI, LVDS
Power Management DC-DC converter design, low-power optimization, PMIC integration
Manufacturing Support Gerber generation, BOM optimization, assembly drawings, test point planning
Compliance Design EMI/EMC considerations, RoHS compliance, IP-rated rugged boards

We collaborate with reputable fabrication partners to ensure your board transitions smoothly from design to production, with AOI (Automated Optical Inspection) and rigorous quality checks at every stage.

2. Rapid Prototyping & PCB Assembly (PCBA)

Prototype workflow: Our prototype workflow creates an idea into a physical prototype.

Prototype validation: We offer prototypes in both small-batch and mid-sized for initial production (entry to market).

What We Offer for Prototypes:

  • Quick turnaround (5-7 days) for prototypes to be delivered.
  • Assist in sourcing components (i.e. procure authentic NXP ICs and passive components).
  • Automated (pick and place) assembly.
  • Manual/some automation of the soldering for very fine pitches devices.
  • Prior to shipping - testing/validation of the prototype’s functionality.
  • Flexible assembly line can accommodate 10 boards for beta test purposes or 1,000 units for initial production.

3. Firmware and Embedded Software Development

While hardware is important, it is only part of the overall solution! Our firmware team develops optimized code for NXP microcontrollers and processors.

Solutions Offering:

  • Real Time Operating System FreeRTOS, Zephyr, or Bare-Metal Implementation
  • Bootloader/Security Solutions HABv4 Secure Boot, AES-256, CAAM Crypto Acceleration
  • Driver Development LVGL GUI Drivers, lwIP TCP/IP Stacks, FATFS File Systems
  • Connectivity Stack BLE, Wi-Fi, Zigbee, Thread, CAN-FD, Ethernet TSN
  • Cloud Integration AWS IoT Core, Azure IoT Hub, MQTT

4. AI Enhanced Hardware Development

Unlike traditional design companies, we provide AI integration at the hardware level. By utilizing TensorFlow Lite and several other edge AI frameworks, we can create "smart" devices that use predictive maintenance, computer vision and sensor fusion in real-time using NXP hardware.

Case Study: Custom NXP PCB Design, Full Assembly, and Firmware Integration

Examples of End-result NXP PCB Design, Full Assembly, and Integrated Firmware to demonstrate our NXP hardware development capabilities from concept to fully assembled and functional boards.

Client Profile/challenges

Client

European industrial automation company (confidential)

Problem

Legacy machine monitoring systems were built using outdated, 8-bit microcontrollers with no connectivity.

The request included:

  • A predictive maintenance node that would wirelessly monitor vibration, temperature, and current.
  • Bluetooth Low Energy (BLE) connectivity for local data capture and configuration.
  • Gateway to the cloud and provides fleet analytics.
  • Ultra-low power consumption (battery powered, 2+ years of use).
  • Ruggedized for factory floor use (IP54 rated).

The customer had a concept but no in house capability for PCB design, NXP firmware development, or assembly.

To demonstrate our end-to-end NXP hardware development expertise, here is a real project we completed – from bare concept to fully assembled, functioning boards..

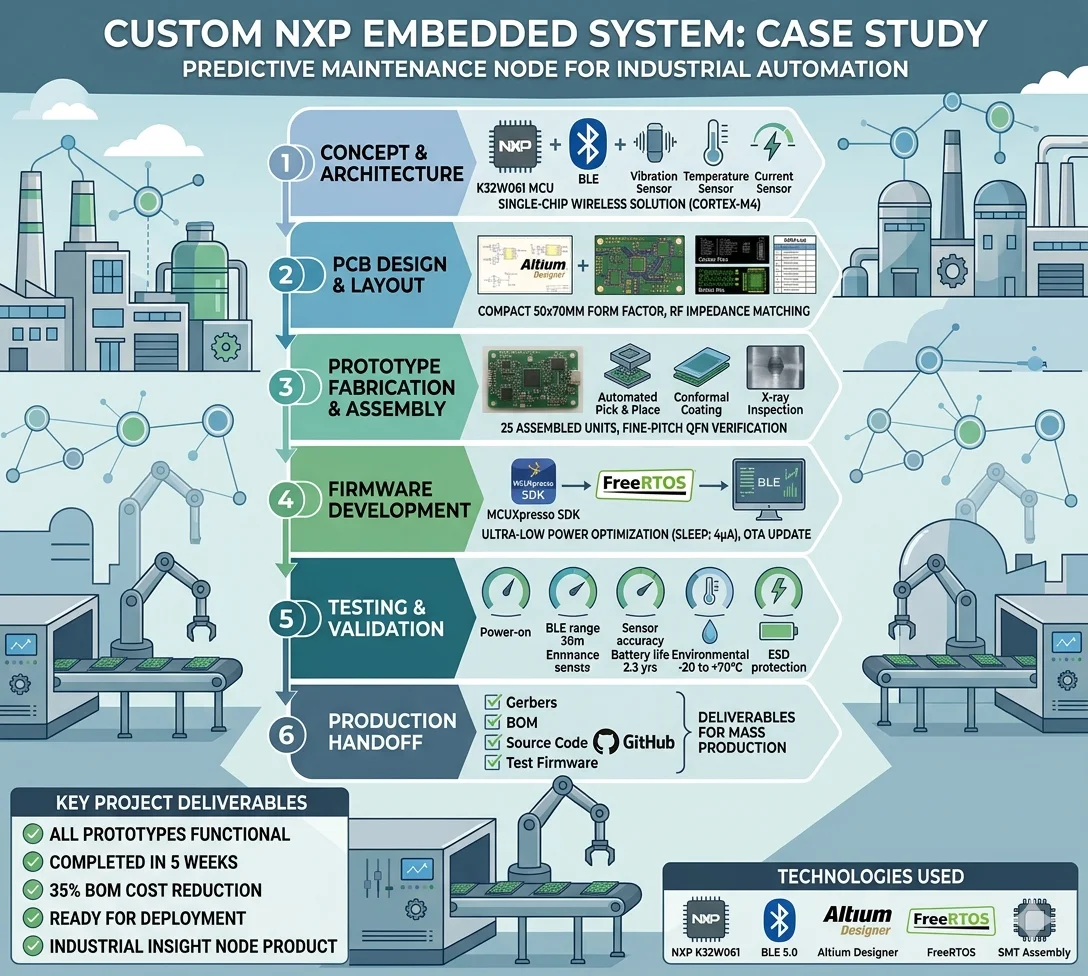

NXP PCB Assembly and Firmware Integration

Our Solution: End-to-End NXP Hardware Development

1

Step 1: Select Architecture/Processer

  • NXP K32W061 is a wireless MCU with a Cortex-M4 processor and features integrated BLE 5.0 and Zigbee protocols
  • Rationale: The single chip configuration eliminates needing separate BLE modules, reduces BOM costs, and provides an ultra-low-power solution (active 45µA/MHz and 0.9µA in sleep mode)
  • Integrated accelerometer (IIS2DH) for vibration monitoring
  • External thermistor for temperature measurement; Current Sensor (ACS712) to provide current measure
2

Step 2: PCB Design & Layout

  • 4-layer PCB design – compact 50mm x 70mm form factor
  • Managed RF layout for BLE antenna impedance matching (50Ω trace)
  • Careful power plane partitioning for analog sensors to reduce noise
  • Battery protection circuitry and efficient DC-DC conversion
  • All components selected for -20°C to +70°C industrial operation

Deliverables produced:

  • Complete schematic (Altium Designer)
  • Gerber files and fabrication drawings
  • Assembly drawings and pick-and-place files
  • BOM with supplier part numbers
3

Step 3: Fabrication & PCB Assembly (PCBA)

The third stage is PCB Assembly and Fabrication.

  • 25 assembled prototype units were produced.
  • All of the surface-mount devices were assembled by automated pick & place.
  • The fine pitch QFN (K32W061) was hand-verified using X-ray.
  • Conformal coating was applied to protect the board against environmental damage
  • Each board was powered on and tested for functioning as a BLE beacon, as well as for validation of sensor readings.
4

Step 4: Firmware Development

The ultimate design of the firmware consists of:

  • A reference implementation of the NXP MCUXpresso SDK with FreeRTOS, a wireless UART profile for configuration purposes
  • A sensor fusing the firmware through accelerometer, temperature and current measurements sampled at configurable intervals.
  • Ultra-low power optimization, such that it sleeps between readings and only wakes up upon the receipt of an RTC or a BLE connection,
  • A custom binary protocol for efficient transmission of data; and an option to upgrade the firmware using the BLE (over-the-air (OTA)).
Key Firmware Specifications:
  • Active Current = 8mA (data sampling and BLE transmission)
  • Sleep Current = 4µA
  • Battery Life (2x AA Lithium) = 2.3 years
5

Step 5: Testing & Validation

Our comprehensive test protocol included:

Test Category Specific Tests Result
Power-on Voltage rails, current draw Pass
BLE connectivity Range up to 30m line-of-sight Pass
Sensor accuracy Vibration vs. reference, temperature (±1°C) Pass
Battery life Accelerated aging simulation 2.1+ years
Environmental -20°C to +70°C thermal cycling Pass
ESD protection ±8kV contact air discharge Pass
6

Step 6: Production Handoff

  • Delivered final Gerbers, BOM, and assembly files for mass production
  • Provided test firmware for production line validation
  • Transferred all source code via private GitHub repository

Deliverables for Customer

  • All prototype boards were running on first try. All 25 prototypes successfully powered up.
  • Prototype boards were completed within 5 weeks from architecture sign-off to delivery of assembly.
  • 35% reduction in bill of material costs due to single-chip NXP solution compared to customer's original MCU and BLE module solution.
  • Firmware is ready for deployment, including over-the-air software updates and cloud integration via gateway.
  • Client has developed a new product based on our design called the "Industrial Insight Node."

Technologies Used in this Project

  • NXP Processor - K32W061 (Cortex-M4F, BLE 5.0)
  • PCB Design - 4 layer, 50mm x 70mm, impedance controlled RF trace layout
  • Firmware development tools - MCUXpresso SDK, FreeRTOS, NXP BLE stack
  • Assembly of product - Surface Mount Device (SMD) and thru-hole components with conformal coating applied;
  • Verifying functionality - Functional testing (Environmental Testing [circuit board test], Electrostatic Discharge [ESD] testing, Battery Life Verification)

Development Boards We Master

We don't just work with raw chips – we develop on and design for NXP's extensive board ecosystem .

FRDM (Freedom) Development Platform

  • FRDM-MCXA153, FRDM-MCXA156 – for MCX A series rapid prototyping
  • FRDM-MCXN236 – for MCX N series AI/ML development
  • FRDM-MCXC444 – for MCX C series low-power applications
  • FRDM-K22F, FRDM-KL25Z – legacy Kinetis development

i.MX Evaluation Kits (EVKs)

  • i.MX 8M Plus EVK – AI vision applications
  • MIMXRT1170-EVK – dual-core crossover development
  • MIMXRT1060-EVK – high-performance HMI prototyping
  • i.MX 93 EVK – efficient edge computing

LPCXpresso Boards

  • LPCXpresso55S69 – dual-core secure IoT development
  • LPCXpresso55S28 – cost-optimized LPC5500 series

S32 Development Platforms

  • S32K3X8EVB-Q289 – S32K3 evaluation for general-purpose automotive
  • S32K144EVB – body control and motor control
  • S32G-VNP-EVB – vehicle networking platform
  • RD-K358BMU – battery management unit reference

Sensor & Analog Evaluation Kits

  • Analog Toolbox collection – PMIC evaluation (KITPF8100FRDMEVM, KITPF8200FRDMEVM)
  • Gate driver evaluation – FRDMGD3160HBIEVM, FRDMGD3162RPEVM
  • Battery cell controller – FRDMDUALK3664EVB

Why Choose Adequate Infosoft for NXP Hardware Development?

We are specialists in NXP technology:

At Adequate Infosoft, NXP is a core part of our business - we only focus on NXP technology.

Our engineers have up-to-date certification, our engineers monitor and track the NXP roadmap so they can stay abreast of the latest developments, and our engineers are active participants in the NXP ecosystem.

Complete Service Under One Roof

We provide an all-inclusive solution (from PCB design through fabrication through assembly through firmware) within a single vendor relationship:

  • PCB design & layout → In-house
  • Component sourcing & procurement → Partner network
  • PCB fabrication & assembly → Curated supplier partnerships
  • Firmware development → In-house
  • Testing & validation → In-house
  • Production support → End-to-end

Proven Track Record Across NXP Product Lines

From i.MX RT1170 vision systems to S32K3 automotive controllers to K32W IoT nodes, we have delivered production hardware across every major NXP family.

AI-Powered Development

Using TensorFlow Lite and NXP's eIQ software, we are able to develop edge-AI capabilities and embed predictive maintenance, computer vision, and anomaly detection into your hardware.

Global Standards & Regulations

We adhere to:

  • IPC standards for PCB design and manufacture
  • RoHS and REACH compliance
  • ISO 9001 Quality Processes
  • EMC/EMI Pre-compliance (FCC, CE)
