ESP32-C3 Based Low-Power Soil IoT Sensor Development

Project: Soil Sensor Firmware and Hardware Development (BLE + ESP32-C3)

Role: Firmware and Hardware Engineer

Goal: Provide a working prototype in accordance with the client's exclusive ownership of IP using the standard three-phased milestones to provide sound sensor data for BLE transmission, as well as ensure timely and accurate delivery of the prototype.

For a handheld soil sensing device, there will be a tradeoff between the precision of the sensors (pH, EC, NPK, moisture, temperature) and how efficiently the device uses power (i.e., battery operated) as well as maintain a reliable connection (BLE wireless).

The client has stated that they want to use the ESP32-C3 as the primary MCU (Microcontroller Unit).

This case study evaluates alternative MCUs for strategic advantage before committing to a phased prototyping roadmap.

The client requested the ESP32-C3 (RISC-V architecture, WiFi/BLE 5.0). This chip has good specifications as well as cost efficient. However, for a handheld, battery-operated device transmitting NPK data (where readings may be taken infrequently in a field), power consumption is king.

Analysis of Alternatives:

Feature	ESP32-C3 (Specified)	Nordic nRF52840 (Recommended Alternative)
Core	RISC-V @ 160 MHz	ARM Cortex-M4F @ 64MHz
Flash/RAM	4MB / 400KB	1MB / 256KB
Deep Sleep Current	~5µA (Light sleep) / 5µA (Deep)	~0.8µA (Ultra low power)
BLE Performance	Standard 2Mbps	Best-in-class + Bluetooth 5.2 / Thread / Zigbee
Sensor Interface	6 x ADC (12-bit), I2C, SPI, UART	8 x ADC (12-bit), High-speed I2C, SPI, NFC-A
Development	ESP-IDF (Easy)	nRF Connect SDK / Zephyr (Steeper curve)

Why the nRF52840 wins for this use case:

Search results indicate that for "low current BLE applications, nRF52840 is by far the best". While the ESP32-C3 is excellent for connectivity-heavy tasks (Wi-Fi polling), the nRF52840 consumes 1/6th the sleep current of the ESP32-C3. Since a soil sensor spends 99% of its time sleeping and 1% reading/sending, the nRF52840 will yield significantly longer battery life.

Recommendation: Proceed with ESP32-C3 for the initial prototype (to meet client specification and lower barrier to entry for debugging), but design the PCB with pin-to-pin compatibility for the nRF52840 (or a modular XIAO style board) to allow a power-optimized hardware revision later.

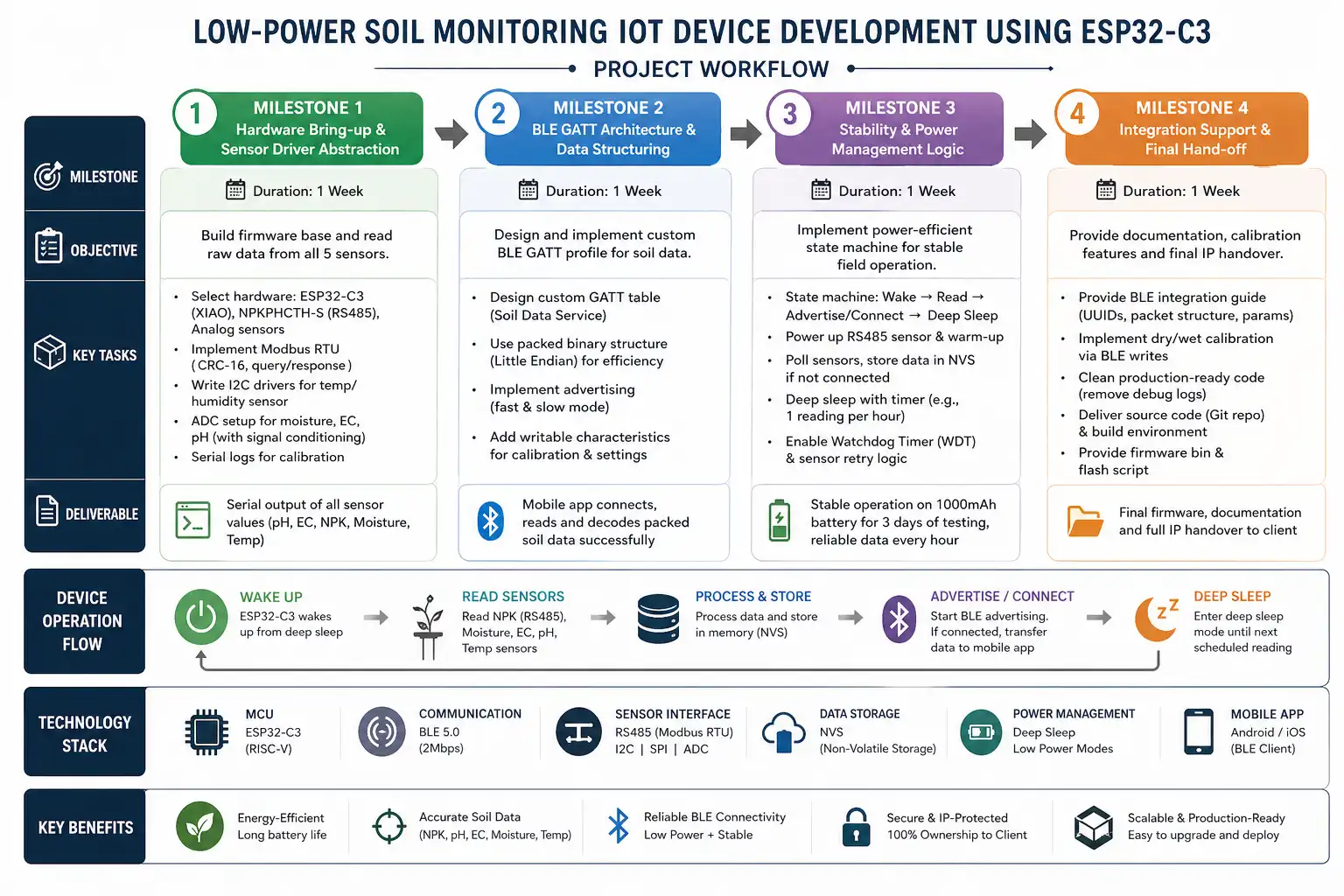

To satisfy the IP ownership clause and ensure transparency, the project is broken into 4 Milestones. Deliverables are provided as source code, schematics (if needed), and binary blobs.

Milestone 1: Hardware Configuration & Sensor Driver Abstraction.

Timeframe: 1 Week.

Scope of Work: Create firmware that provides a baseline for obtaining raw data (in bytes) from the five sensors.

1. Hardware

• MCU - XIAO ESP32-C3 development board (for rapid prototyping).
• Sensor Probe - RS485 NPKPHCTH-S probe (7-in-1). The sensor requires an RS485-to-TTL converter to provide Modbus RTU support. This probe has become the standard in the industry for "digital" NPK sensors.
• Moisture, EC and pH sensors (when using analog probes) will use the ADC channel with the need for appropriate signal conditioning circuits.

2. Firmware

• Implementation of Modbus CRC-16 algorithm and the processing of Modbus query/response pairs to/from the NPK probe.
• Implementation of I2C drivers for the digital Temperature and Humidity sensors (i.e., BME680).
• Calibration routine for logging over Serial UART.

Success Criteria: Serial.print outputs of pH:6.4, EC:1.2, N:120, P:45, K:78, M:35%, T:22C.

Milestone 2: BLE GATT Architecture & Data Structuring

Duration: 1 Week

Deliverable: A custom BLE GATT profile that structures the soil data efficiently.

1. Design the GATT Table:

Avoid using raw notify/indicate floods. Instead, create a specific "Soil Data" characteristic.

Client requirement: "Data structuring and formatting." We will use a packed binary struct (Little Endian) over BLE to save power vs. sending JSON strings.

2. Connection Logic:

• Implement Advertising (fast mode for 30s, then slow mode).
• Set up GATT Server with custom Service UUID.
• Allow writeable characteristics for calibration offsets and deep sleep intervals.

"A mobile app can connect to the device, discover the service, and read the packed binary data, decoding it correctly."

Milestone 3: Stability & Power Management Logic

Duration: 1 Week

Deliverable: A state machine governing "Measure -> Advertise -> Sleep".

1. The Loop Logic:

• State 0 (Wake): Power up the RS485 sensor (this often takes >500ms to warm up).
• State 1 (Read): Poll Modbus sensor + Read Analog pins.
• State 2 (Connect/Adv): Turn on BLE radio. If phone is near, connect and dump data. If not, store data in NVS (Non-Volatile Storage) and advertise for 5 seconds.
• State 3 (Deep Sleep): Enter esp_deep_sleep(). Set a timer for wake (e.g., 1 reading per hour).

2. Stability Handling:

• Watchdog Timer (WDT): Enable a hardware watchdog to reset the ESP32 if the Modbus sensor hangs (e.g., no response on the RS485 bus).
• Sensor Retries: If CRC check fails on NPK data, retry 2 times before sleeping to preserve battery.

"The device runs on a 1000mAh battery for 3 days of testing without crashing (WDT reset), sending data reliably each hour."

Milestone 4: Final Integration and Handoff

Timeframe: One week

Deliverable: Documentation and final binary with complete IP transfer.

1. Mobile Integration API

Provide the client or client's application developer with a PDF integration guide that includes the UUIDs for the service, definition of the packet structure (byte 0 = N MSB), and BLE connection specifications (latency, timeout).

2. Field Logic Calibration

Implement a dry and wet calibration for the analog moisture sensor using BLE writes.

3. Code Handoff

Remove any debugging serial prints that consume CPU cycles. Provide the project codebase in a private Git repository which has been cleaned of any third-party license agreements that conflict with exclusive IP rights. Flattened build; provide firmware.bin and a one-click flash script so that the client will have the ability to recreate the build environment (Docker container or VSCode workspace).

Success Criteria: The mobile developer for the client will be able to obtain data via BLE and demonstrate "Soil healthy."

Since "All intellectual property belongs exclusively to us":

No Open Source Libraries with Copyleft (GPL):

We will use only license types that are permissive (MIT, Apache, BSD, or Espressif's standard libraries). GPL code obligates the client to release their hardware design as open source. We will check to ensure all components comply.

Obfuscation of Code (Internal):

Source code will be provided, however, the important calibration logic (linear regression for EC/pH with temperature compensation) will be commented properly, but will functionally lock to the specified hardware pinout.

No Competing:

We will include a clause in the contract stating that the specific state machine and struct logic that is written for this client will not be sold to direct competitors in the agricultural soil sensor industry.

This 4-stage plan will allow us to reduce the risk of fixing defects in our development process. Stage one is to validate the modbus reading for NPK sensors via the ESP32-C3. The second stage will involve optimizing the structure of Bluetooth packets. The third stage is to enforce deep sleep stability on the hardware. Lastly, we will provide a properly secured repository, therefore providing a clean hand-off.

The client should strongly consider switching from the ESP32-C3 to the nRF52840 in the production run of the final product following the success of the prototype if battery longevity is the primary feature from a marketing (configurable) perspective.
