Smart Industrial Vibration Monitoring System, Using NXP i.MX RT1060

Predictive maintenance has become a key part of Industry 4.0 by helping manufacturers reduce downtime, improve equipment lifespan and increase operational efficiency of their factories.

The traditional approach to monitoring equipment usually uses old hardware and fragmented software as well as a lot of manual inputting and exporting of data leaving room for inaccuracy and lack of scalability.

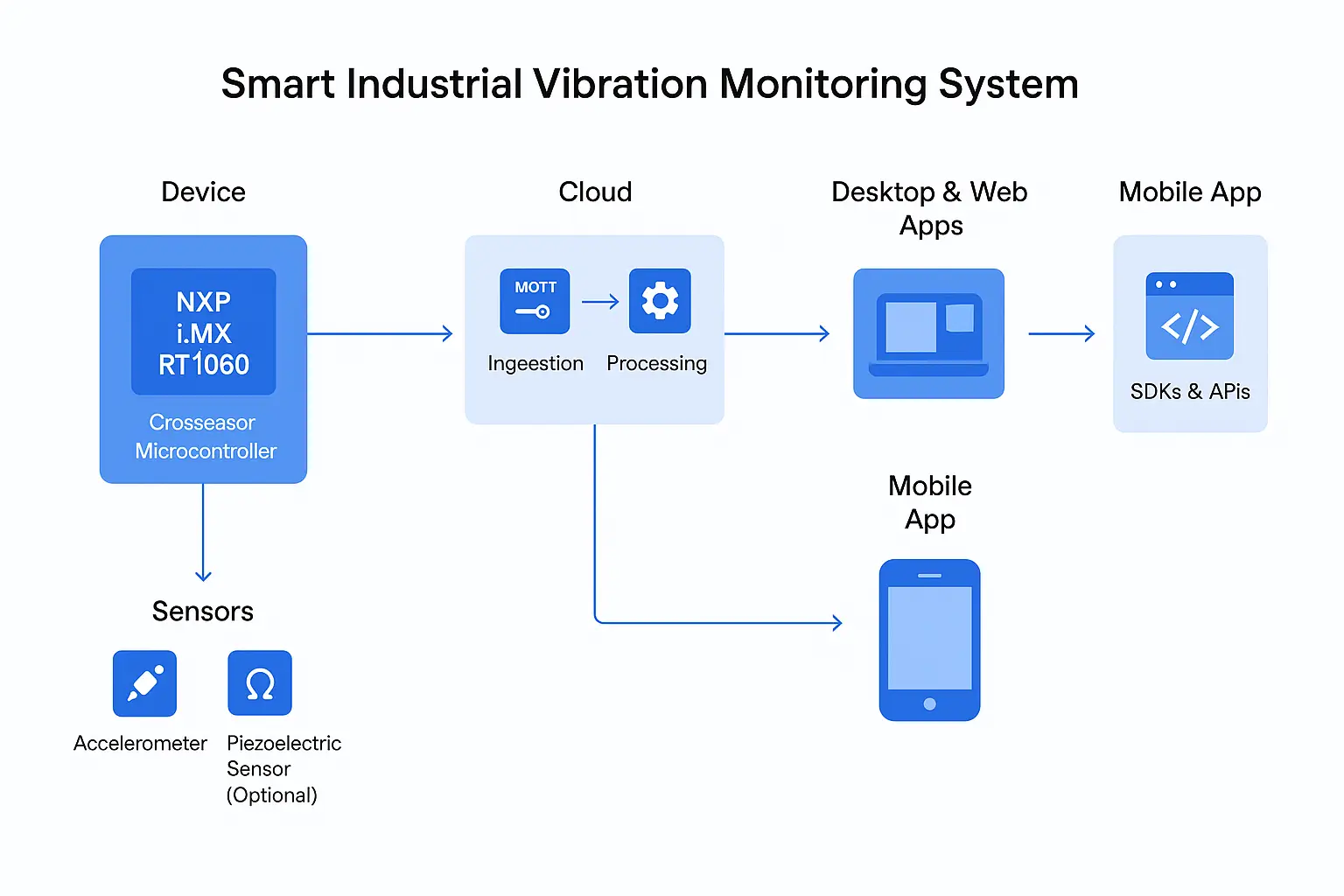

To overcome these issues, we developed VibraSense Pro, a next generation vibration monitoring device using the NXP i.MX RT1060 crossover MCU. This case study explains the entire process of creating this IoT device from the initial design of the hardware through to the different cloud-based monitoring applications of the device providing a governance grade end-to-end industrial IoT monitoring solution.

We focused on the manufacturing industry, specifically rotating machinery such as motors, pumps, compressors, and gearboxes. Each of these machines plays an important role within production lines however due to their moving parts they are also subject to fine wear and tear.

Vibration Analysis has become an important tool used today for identifying early indications of imbalance, misalignment, or impending bearing failures.

With that in mind our objectives were to develop a modular, scalable, and affordable method of providing a predictive maintenance solution to all of these different types of manufacturers.

PCB Development

• Controlling processor:

  NXP i.MX RT1060 microcontroller. High-performance (600 MHz) ARM Cortex M7 core, real-time capabilities, extensive peripheral set.

• Sensors:

  Integrated MEMS accelerometers offer a high sample rate (acceleration) and optional external piezoelectric sensors provide greater precision.

• Communication:

  Dual options, Ethernet for industrial reliability and Wi Fi for flexible deployments.

• Power Source:

  Designed to be resilient and reliable; uses low-noise regulators and has a battery backup.

• PCB Layout:

  Multi-layer design for maximizing signal integrity, minimizing EMI, managing thermal characteristics.

Firmware Engineering

• Real Time Operating Systems:

  Use FreeRTOS to schedule tasks deterministically.

• Driver Development:

  Custom driver implementation for sensors, DMA-based data transfer, and secure communication stacks.

• Edge Processing:

  Use FFTs and ML inference to process data on the MCU to minimize dependence on the cloud.

• Security:

  Utilize hardware acceleration for cryptography (AES, SHA) and secure boot to maintain firmware integrity.

Mechanical & Industrial Design

• Casing:

  Rugged IP65 rated enclosure, resistant to dust, oil, and vibration.

• Mounting:

  Magnetic and bolt-on options for versatile installation on machinery.

• Thermal Design:

  Passive heat dissipation through aluminum casing fins.

• Ergonomics:

  Compact form factor with LED indicators for quick status checks.

Manufacturing & Quality Assurance

We managed the entire manufacturing workflow:

• Prototype Runs:

  Rapid PCB assembly and casing 3D printing for validation.

• Mass Production:

  Partnered with EMS providers for SMT assembly, automated testing, and calibration.

• Quality Control:

  Implemented boundary scan testing, vibration chamber validation, and firmware flashing at factory level.

• Traceability:

  Each device serialized and logged into ERP for lifecycle tracking.

Backend and Cloud Infrastructure

• Architecture:

  • Real-time telemetry data is sent through an MQTT broker ,REST API utilized for batch uploading data.
  • This processing typically consists of a stream analytics pipeline in conjunction with anomaly detection models.
  • Storage of time series data would typically utilize a time series database specifically designed to handle vibration data storage optimally.
  • TLS encryption, role-based access control, and audit log capabilities are used for ensuring data security.
  • The use of micro services in a Kubernetes environment allows for elastic scaling (the ability to scale up and down based on usage).

• Integration

  • ERP/MES Systems:

    Available RESTful APIs and SDKs providing the capability to connect with current business process flows.

  • Alerts:

    Configurable thresholds with email, SMS, and push notifications capabilities.

  • Reporting:

    Automated PDF/Excel reports created for maintenance teams.

Application Ecosystem

• Desktop Applications:

  • Cross-Platform Applications. We will be using Electron to build our Windows and Mac OS applications.
  • Device provisioning, real-time dashboards, and offline analysis can all be done with our applications.

• Web Portal:

  • Multi-Tenant Access. Developed in React using Node.js.
  • Providing role-based dashboards for plant managers, maintenance engineers, and operators.

• Mobile Applications:

  • Native Mobile Applications - iOS and Android.
  • Push alerts, quick troubleshooting, and onboarding of the device through QR Codes.

• APIs & SDKs:

  • SDKs: Available for C#, Java, and Python, enabling users to add their own workflows to our SDKs.
  • RESTful API: Enables developers to query vibration data, device health, and get analytics results using third-party applications.

AI Edge:

Lightweight ML models make it possible to detect anomalies on the device.

OTA Updates:

Remote access to the device allows for secure firmware updates and changes to system configuration to take place via cloud-based connection.

Diagnostics:

JSON formatted structured logs enable downstream parsing of collected information.

Localization:

Applications and dashboards offer multiple languages.

Governance:

Established audit trails that allow for compliance with relevant standards such as ISO or IEC.

The impact of this technology on business continued to be impressive by way of:

• Reducing downtime through the early identification of mechanical problems before they became expensive breakdowns.
• Improving operational efficiency by automating the reporting and thereby reducing manual inspection hours.
• Facilitating scalability through modular designs that can be easily installed at multiple plants.
• Lowering cost of goods sold through optimized PCB and casing design, saving BOM costs while preserving reliability.
• Enabling non-technical personnel to monitor their assets using user-friendly apps.

• Optimization of firmware has resulted in less load on the CPU due to DMA-based sensor acquisition of those sensors.
• Kubernetes orchestration has been critical as the system scales to manage large volumes of telemetry streaming.
• Onboarding through mobile app scanable via QR codes for easy deployment.
• Secure boot and Over-The-Air (OTA) update for secure and trusted lifetime of the device.

"We have been able to reduce the amount of manual effort involved in tracking and monitoring the performance of our equipment and to get clearly defined data on an up-to-date basis. Thus far, we have already experienced good increases in our ability to improve operational efficiency and reduce downtime."- JAYEM Manufacturing Co

In closing, the VibraSense Pro project shows that cross platform MCUs like the NXP i.MX RT1060 provide the foundation for complex Industrial IoT systems.

Combining the development of hardware, firmware, mechanical design, manufacturing, cloud infrastructure, and software provided a single source LIS for the complete end to end solution.

This holistic perspective enables not only technical excellence but allows industries to adopt predictive maintenance with assurance, scalability, and enterprise-level (governance) reliability.
