ESP32-Based Drone Platform Prototype Development

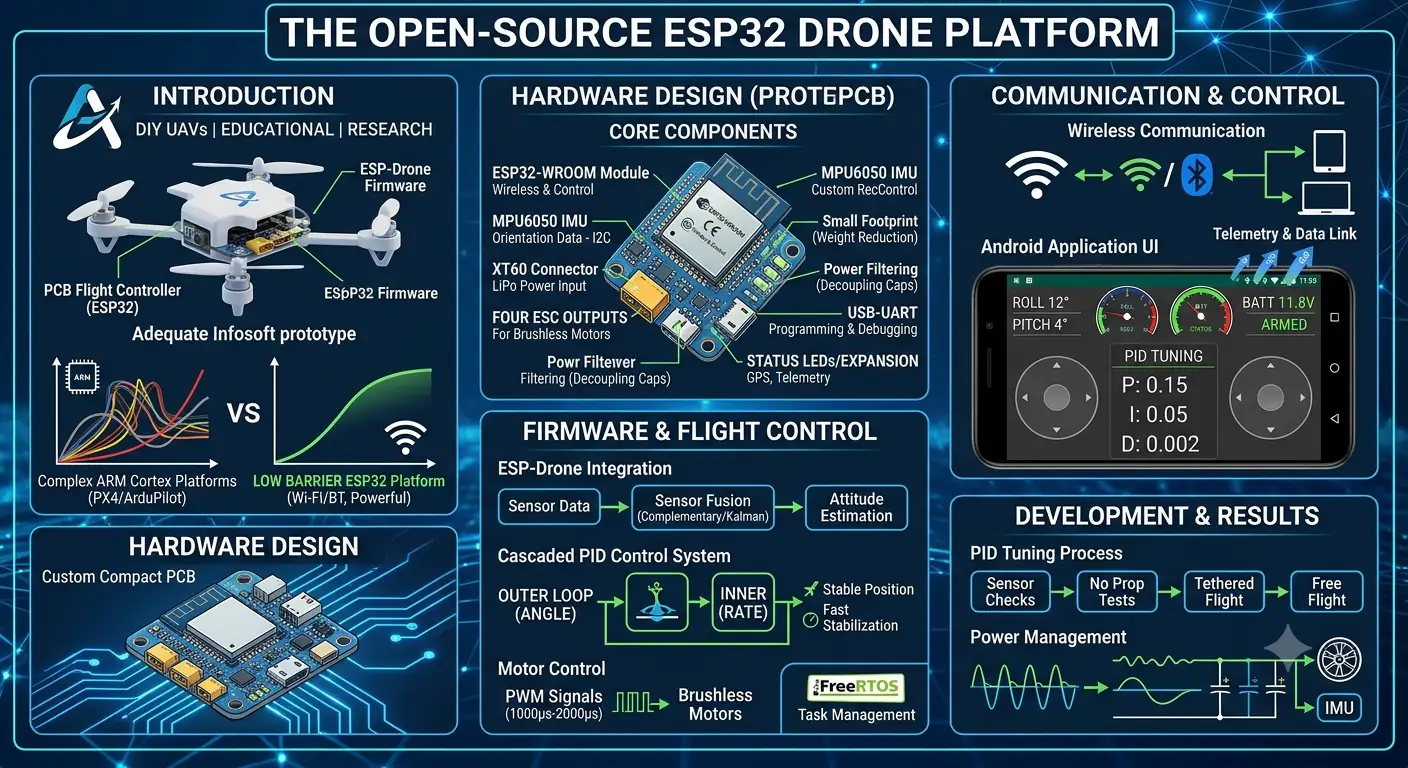

ESP32 Drone Platform is an open-source platform for hardware and firmware aimed at creating low-cost, affordable bases for DIY UAVs, educational platforms in embedded systems, and other research purposes in aerial vehicles.

A good prototype was developed by Adequate Infosoft, where it is a combination of a PCB flight controller based on ESP32 and ESP-Drone firmware establishment, which builds a comprehensive platform to connect DIY technology creators and professional drone developers.

This project tackles a crucial issue within the drone community: powerful open-source flight control systems such as PX4 and ArduPilot often require complicated ARM Cortex-based devices and a steep learning process.

However, by using completely integrated Wi-Fi and Bluetooth capabilities of the ESP32 microcontroller, it is able to keep the hurdles to joining drone development relatively low while still having enough computing power to achieve stable flight control.

The prototype is grounded in the use of the ESP32-WROOM module for its dual-core processing abilities, wireless capabilities, and ubiquitous availability. The custom-designed PCB incorporates a small form factor designed for applications involving quadcopters and includes necessary interfaces for flight.

Core Components

The main components integrated onto the PCB include:

ESP32-WROOM Module:

The ESP32-WROOM Module functions as the main microcontroller, allowing it to implement flight control algorithms, sensor fusion, and wireless communications at the same time.

MPU6050 IMU:

The MPU6050 IMU is the combination of a 3D accelerometer and a 3D gyroscope, and it is responsible for providing necessary orientation and motion data for stable flight using the I2C protocol to communicate with the ESP32.

XT60 Battery Connector:

The XT60 Battery Connector serves as the standard LiPo battery connector, which delivers the energy required for the brushless engine system.

Four ESC Outputs:

Four ESC Outputs are provided to connect to several electronic speed control units to manage brushless motors either in separate ESC's or 4 in 1 ESC configuration.

USB-UART Programming Interface:

The USB-UART programming interface allows firmware to be flashed and debugged from a computer without any extra programming devices.

Status LEDs and Expansion Headers:

Status LEDs indicate power and working state, while the expansion headers provide a way to interface with the GPS modules, telemetry devices, and additional sensors.

PCB Design Methodology

The PCB layout is designed according to certain important principles. The footprint of the design is kept to a minimum so as to reduce the weight, the signal route is assured to be neat to avoid any interference, good power distribution with required filtering and decoupling capacitors is ensured, as well as reliable programming access.

This modular approach in layout allows to follow the incremental approach in development, where adding more peripherals just requires minor changes in the existing design.

The repository includes comprehensive hardware documentation: schematics, PCB layout files, Gerber files for manufacturing, and a complete Bill of Materials.

This transparency enables other developers to reproduce the hardware, modify the design for their specific requirements, or use the files as a learning resource for PCB design practice.

ESP-Drone Firmware Integration

This hardware was developed specifically for working with the ESP-Drone firmware created by Espressif Systems.

The ESP-Drone firmware comprises a complete flight control system that includes attitude estimation, PID control loops, motor mixings, and communication protocols.

The ESP-Drone firmware utilizes a cascaded PID control system in which there are two separate loops.

In this PID control system, the rate loop behaves more quickly and stabilizes the rate of rotation of the drone, while the angle loop keeps the drone in space's desired position.

Moreover, the firmware has customizable PID parameters. This allows developers to modify the characteristics of the flight for different frame sizes and motor setups.

Sensor Fusion and Attitude Estimation

The data from the MPU6050 IMU is processed through sensor fusion to calculate the drone's orientation.

The software uses either the complementary filter or Kalman filter method of fusing the gyroscopic readings with the accelerometer readings so that drift from the gyroscope readings and noise from the accelerometer readings can be compensated.

This fusion is critical for stable flight, as it provides the control loops with accurate real-time orientation data.

Motor Control and ESC Interface

PWM signals are produced by the ESP32 to control electronic speed controllers of brushless motors that are connected. Each motor output works within the standard range of pulse widths from 1000 to 2000 microseconds, where a pulse width of 1000µs means the minimum throttle and that of 2000µs means maximum throttle.

The firmware includes an arming sequence that sets throttle to minimum for a specified period before accepting flight commands, a standard safety feature in ESC-based motor control systems.

Real-Time Operating System

The firmware employs FreeRTOS, a real-time operating system found in the ESP32, to execute numerous tasks concurrently, with the most important one being strict flight control loops and less important being telemetry transfer, sensor calibration, and user inputs processing.

This architecture of task management ensures that no emergencies in flying take place as a consequence of less important operations.

Wireless Communication

The built-in Wi-Fi and Bluetooth functions of the ESP32 offer the major means of communication for the drone system.

Wi-Fi connection allows performing long-distance control and telemetry, while the ESP-Drone firmware supports traditional Wi-Fi protocols for connection from smartphones, tablets, and PCs. BLE is a secondary means of communication, particularly relevant in short-range configuration and troubleshooting during the development.

Android Application

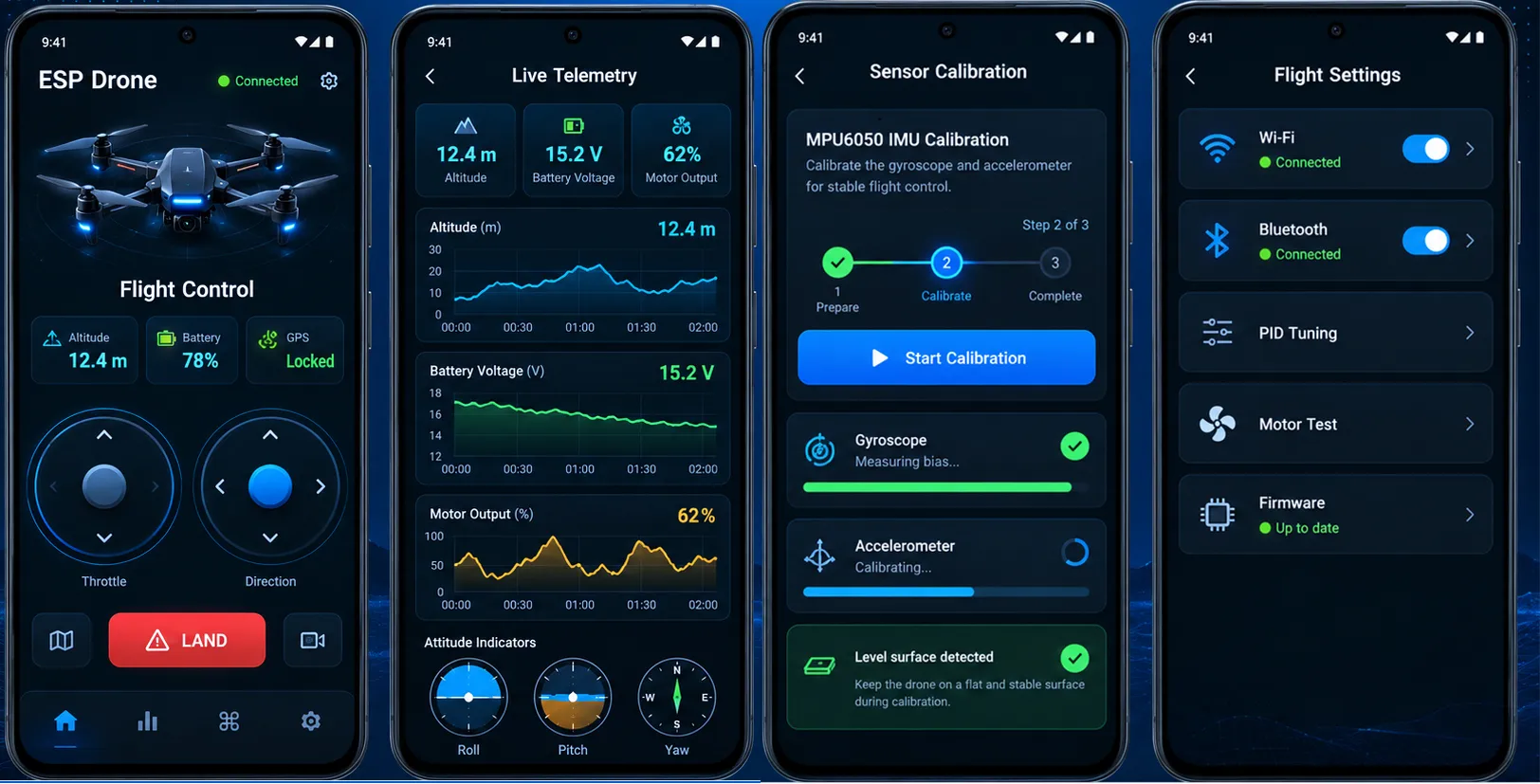

Included within this platform is the ESP-Drone Android Application. The app has a full control interface including manual flight control capability using virtual joystick, telemetry view with real-time data on attitude, altitude, battery status, and other important status information; calibration procedures; and configuration of flight parameters.

The app package is included in the repository making it direct and ready to use without doing compilation work for the users.

Telemetry and Data Link

The role of the telemetry system is to send the flying information from the drone to the ground station at controllable rates. Parameters that are transmitted include roll angle, pitch angle, the angle of rotation, engine level, battery voltage, and PID loop specifics on the Android app to monitor the process at the moment of flying.

The significance of the telemetry function in PID tuning cannot be denied as the developer gets familiar with the way the control loops react to disturbance and can change the gains correspondingly.

This prototype development utilized an iterative methodology from component selection through PCB design and firmware integration to flight testing; therefore, its repository structure reflects this systematic arrangement, separating directories for the hardware files, firmware source code and binaries, and documentation.

Component Selection Challenges

Selecting the ESP32-WROOM module represented a deliberate trade-off between processing power and simplicity.

While more powerful microcontrollers exist, the ESP32's integrated wireless capabilities eliminated the need for separate radio modules, reducing both cost and board complexity.

The MPU6050 was chosen over more advanced IMUs for its widespread availability, low cost, and sufficient performance for stable flight in educational and hobbyist applications.

PID Tuning and Flight Testing

Stable flight necessitated careful PID adjustment stemming from reliance on mass distribution, motor specifications, and frame structure.

The method of development entailed systematic testing, beginning with sensor checks, proceeding to engine performance tests without the propellers, and culminating with tethered tests before gaining the ability for free flight.

Cascaded PID design enabled tuning of angle and rate loops independently, thus simplifying the task of making adjustments.

Power Management Considerations

The printed circuit board (PCB) includes various capacitors for both power filtering and decoupling. These capacitors help counteract noise generated from brushless motors and electronic speed controllers (ESC).

The role of power management in this design is essential, as it helps keep the ESP32 and IMU operation stable. Any voltage variation could lead to possible sensor malfunction or microcontroller reset while performing much more complex maneuvers.

The prototype successfully demonstrates stable flight controlled via Wi-Fi from an Android device, validating the hardware and firmware integration.

The open-source nature of the platform enables community contributions and customization, with the repository inviting pull requests and improvements.

The printed circuit board (PCB) has a number of capacitors for the purpose of filtering and decoupling the electricity to ensure quality in the power supply. In this way these components facilitate voltage variations and high-frequency sounds emanating from brushes motors and ESC and avoid any interference with delicate electronic systems such as the ESP32 and IMU.

Proper power management is a necessity for the successful work of the set-up while carrying out complicated maneuvers. Stable voltage levels allow to refrain from IMU errors, sensor failure, and connection problems that can lead to an unwanted reset of ESP32.

These improvements will transform the prototype from an educational platform into a more capable UAV development system while maintaining the core philosophy of accessibility and open-source collaboration.

This prototype of the ESP32 Drone Platform shows that the advancements in microcontroller technologies can bring drone technology within everyone's reach.

The project has a complete ecosystem of documented and upgradeable devices that include a dedicated PCB as well as the ESP-Drone software and firmware.

The availability of thorough hardware documentation along with prebuilt firmware and a compatible Android app lowers the barriers to innovation in aerospace technology development.

This prototype can work as an efficient drone device and a learning tool at the same time for those involved in embedded systems and robotics processes.

Project Repository: github.com/IoT-App-Development-Company/esp32-drone-platform
